Commercial HVAC systems can remove substantial amounts of moisture from indoor air while cooling a building. That water must collect and drain correctly. When a condensate line becomes clogged, a drain pan deteriorates, a condensate pump fails, or an evaporator freezes and later thaws, water can overflow into ceilings, mechanical rooms, walls, floors, and other areas of a commercial property. For Houston businesses, professional Commercial HVAC & Industrial Refrigeration Services in Houston TX can help identify drainage and condensate problems before they cause extensive water damage or contribute to equipment failures. ACF Mechanical provides commercial HVAC and refrigeration diagnostics, repair, and preventive maintenance for businesses throughout Houston, TX.
Where Does HVAC Condensate Water Come From?
Commercial air-conditioning systems do more than reduce air temperature. They also remove moisture from the air.
When warm, humid air passes across a cold evaporator coil, water vapor can condense on the coil surface. The condensate normally falls into a drain pan and leaves the equipment through a dedicated drainage system.
Depending on equipment design, that drainage system may include:
- Primary drain pans
- Secondary or auxiliary pans
- Condensate drain lines
- Traps
- Condensate pumps
- Float switches
- Overflow switches
- Drain connections
When each component works correctly, condensate leaves the system without affecting the building.
When something becomes blocked, damaged, disconnected, or incorrectly installed, water may begin accumulating where it should not.
Why Houston Humidity Makes Condensate Drainage Important
Houston’s climate makes condensate management particularly important.
During hot and humid weather, commercial HVAC equipment may operate for long periods while removing moisture from indoor air. Higher moisture loads can mean significant condensate production.
This does not mean humidity itself causes every drainage problem. Instead, heavy cooling and dehumidification demand can expose an existing restriction or drainage defect more quickly.
For commercial buildings in Houston, a partially restricted drain that appears manageable during lighter weather may become a more noticeable problem when the HVAC system operates continuously during Texas heat and humidity.
Businesses may then experience:
- Overflowing drain pans
- Water around air handlers
- Ceiling leaks
- Wet mechanical rooms
- HVAC shutdowns triggered by overflow protection
- Increased indoor moisture
Reliable drainage is therefore an important part of commercial HVAC operation in Houston, TX.
Common Causes of Commercial HVAC Water Leaks
A commercial HVAC water leak Houston TX property managers discover can have several possible causes.
Common problems include:
- Clogged condensate drain lines
- Damaged drain pans
- Improper drain slope
- Failed condensate pumps
- Blocked traps
- Disconnected drain piping
- Frozen evaporator coils
- Drain pan overflow
- Float switch problems
- Poor equipment drainage
- Excessive moisture around equipment
The location of the water can provide useful clues, but professional diagnostics may still be necessary to identify the actual source.
Clogged Commercial HVAC Condensate Drain Lines
A clogged condensate line is one of the most common reasons water cannot leave HVAC equipment correctly.
Drain lines can accumulate material over time that restricts water flow.
A commercial HVAC drain line clogged Houston facility may result in water backing up into the drain pan.
Possible symptoms include:
- Standing water in the drain pan
- Water around the HVAC unit
- Ceiling stains
- Water dripping from overhead equipment
- Overflow switch activation
- HVAC equipment unexpectedly shutting down
Professional commercial HVAC condensate drain cleaning Houston can remove restrictions and restore drainage when a blockage is responsible.
However, repeated clogging may indicate that the drainage system requires a more complete evaluation.
Drain Pan Problems and Water Overflow
The drain pan sits beneath the evaporator coil and collects condensate.
Over time, a pan can deteriorate, corrode, crack, shift, or develop other problems.
A commercial HVAC drain pan leaking Houston system may release water even if the drain line itself remains open.
Technicians may need to evaluate:
- Pan condition
- Drain connection
- Equipment level
- Corrosion
- Cracks or deterioration
- Water flow toward the drain
Depending on the condition of the pan, commercial HVAC drain pan repair Houston TX or replacement may be required.
Simply clearing the drain will not correct a physically damaged pan.
Condensate Pump Failures
Some commercial HVAC installations cannot rely entirely on gravity drainage.
A condensate pump may be required to move water from the equipment to an appropriate drain location.
A commercial HVAC condensate pump failure Houston TX can cause water to accumulate quickly.
Potential symptoms include:
- Pump not operating
- Reservoir filling with water
- Overflow around equipment
- Equipment shutdown
- Intermittent drainage
- Unusual pump noise
Professional commercial HVAC condensate pump repair Houston should determine whether the issue involves the pump itself, power supply, float mechanism, discharge tubing, or another component.
Float Switches and Overflow Protection
Many commercial HVAC systems use float or overflow switches to reduce the risk of water damage.
When water rises beyond an expected level, the switch may interrupt cooling operation.
If a commercial HVAC unit suddenly stops cooling and water is visible in or around the drain pan, an overflow safety may have activated.
A commercial HVAC float switch problem Houston TX can also create diagnostic confusion if the switch is malfunctioning rather than responding to an actual drainage problem.
Technicians should determine:
- Whether condensate is backing up
- Why the water level increased
- Whether the safety device is operating correctly
- Whether the drainage system has another defect
The objective is not simply to bypass the switch and restart the equipment. The reason the safety activated should be identified.

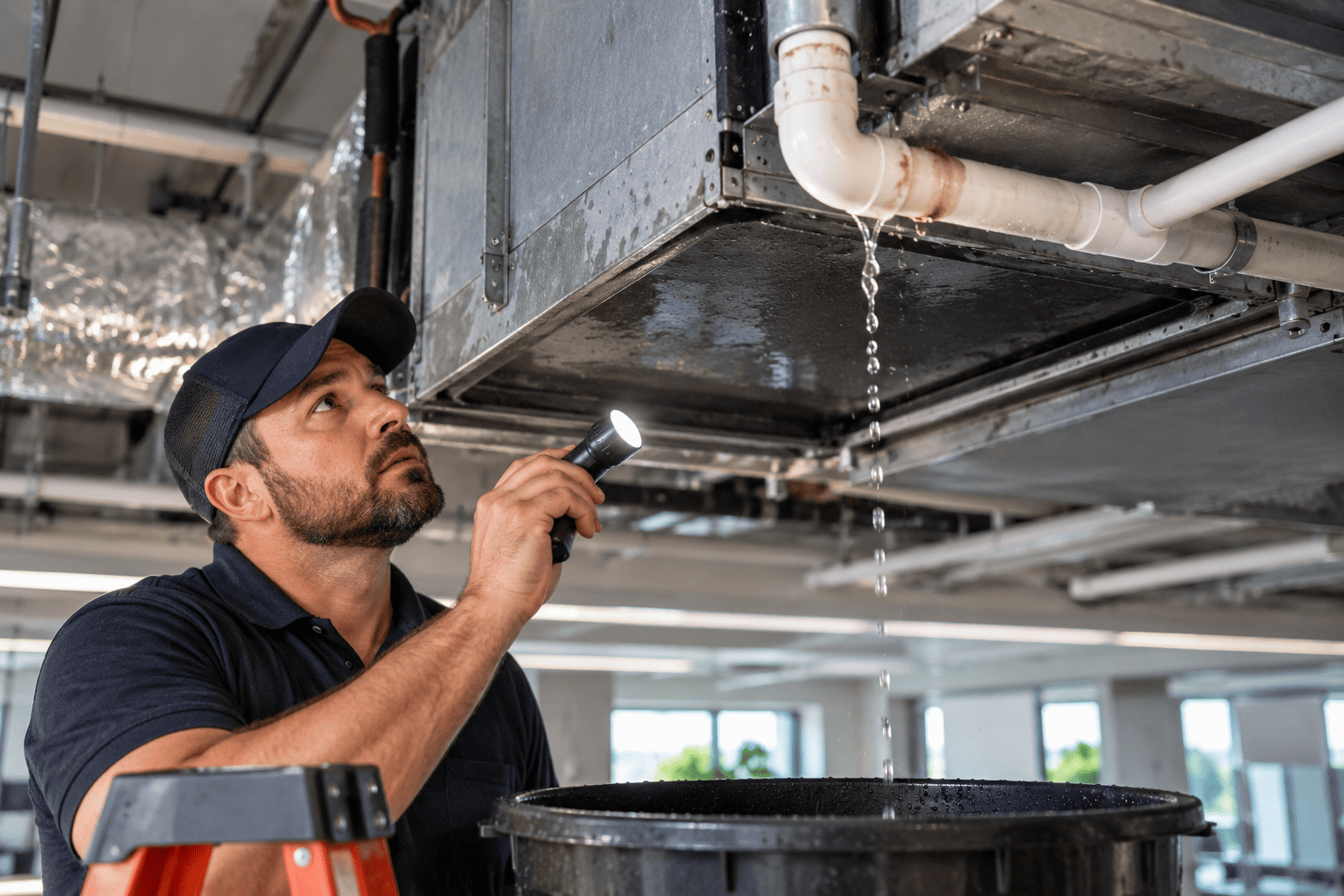

Air Handler Leaking Water in Houston
An air handler leaking water Houston TX businesses discover can create significant building damage because air handlers are frequently installed above ceilings, in mechanical rooms, or in other interior locations.
Possible causes include:
- Clogged drain line
- Damaged drain pan
- Condensate pump failure
- Frozen evaporator coil
- Improper drainage
- High moisture load
- Drain connection problems
If water is appearing below an air handler, the system should be evaluated promptly.
Ignoring the problem can allow water to spread into ceiling materials, insulation, walls, flooring, or nearby equipment.
Why Rooftop HVAC Units Can Leak Water
A rooftop unit leaking water Houston property managers notice may involve condensate drainage, coil conditions, equipment configuration, or another source of moisture.
Rooftop units are exposed to outdoor conditions including:
- Heat
- Humidity
- Rain
- Debris
- Vibration
- Temperature changes
A rooftop HVAC drain problem Houston TX may involve a blocked outlet, damaged drain connection, improper drainage, or another restriction.
It is also important to distinguish condensate from rainwater intrusion.
Water around a rooftop unit does not automatically mean the HVAC condensate system is responsible.
A professional inspection can help identify whether the source is the unit’s drainage system, building envelope, roof, or another condition.
Frozen Evaporator Coils Can Create Water Leaks
A frozen evaporator coil can eventually create a large amount of water when the accumulated ice melts.
A commercial HVAC frozen coil water leak Houston TX may therefore appear suddenly even though the condition developed gradually.
Possible causes of evaporator icing include:
- Restricted airflow
- Dirty filters
- Dirty evaporator coil
- Fan problems
- Refrigerant-related problems
- Control issues
- Other system faults
The water leak is only one symptom.
The underlying reason the evaporator froze must also be identified.
Simply cleaning up the water without diagnosing the frozen coil can allow the problem to return.
Where the Water Appears Can Help Identify the Problem
The location of visible water can provide useful diagnostic clues.
| Where Water Appears | Possible Cause |
|---|---|
| Around air handler | Drain pan, clogged drain, frozen coil |
| Ceiling below HVAC equipment | Overflowing condensate system |
| Around rooftop unit | Drainage issue, condensate, or rainwater |
| Near condensate pump | Pump or discharge problem |
| Near walk-in cooler | Drain blockage or refrigeration issue |
| Ice around freezer drain | Drain or defrost problem |
| Water after equipment shuts down | Frozen evaporator thawing |
| Mechanical room floor | Drain, pump, pan, or piping problem |
These are possible causes rather than definitive diagnoses.
Commercial HVAC equipment should be inspected to determine the actual source.
Can an HVAC Water Leak Damage a Commercial Building?
Yes. Even a relatively small leak can create significant problems when it continues unnoticed.
Commercial HVAC water damage Houston businesses may experience can affect:
- Ceiling tiles
- Drywall
- Insulation
- Flooring
- Stored materials
- Office equipment
- Electrical components
- Building finishes
- Areas below rooftop or overhead equipment
Water can also create slip hazards in occupied or working areas.
For commercial property owners and facility managers, addressing the source quickly is often less expensive than repeatedly repairing building materials while the HVAC drainage problem remains unresolved.
Commercial AC Ceiling Water Leaks
A commercial AC ceiling water leak Houston TX business notices requires prompt attention because the visible drip may be some distance from the actual source.
Water can travel across:
- Structural components
- Ductwork
- Pipes
- Ceiling systems
- Insulation
The HVAC unit should be evaluated along with the surrounding area to determine whether the source is condensate, plumbing, roofing, or another building system.
If HVAC condensate is responsible, technicians should identify why water is leaving the intended drainage path.
Water Leak or Refrigerant Problem?
Water and refrigerant issues can sometimes produce overlapping symptoms.
For example, an evaporator may freeze because of an airflow or refrigerant-related problem and then release water when the ice melts.
| Symptom | Possible Drainage Issue | Other Possible Cause |
|---|---|---|
| Water around air handler | Clogged drain or pan | Frozen coil |
| Ceiling leak | Condensate overflow | Roof or plumbing |
| Frozen evaporator | Water after thawing | Airflow or refrigerant problem |
| HVAC shuts down | Overflow switch | Electrical/control issue |
| Poor cooling | Drain safety stopped unit | Mechanical/refrigeration issue |
| High indoor humidity | Drainage/operation issue | HVAC performance problem |
Professional commercial HVAC diagnostics Houston TX should identify the primary problem instead of treating only the visible symptom.
Commercial HVAC Moisture and Humidity Problems
Drainage problems can also affect moisture management inside a building.
Commercial HVAC systems in Houston frequently operate under high latent loads because outdoor air contains substantial moisture.
If equipment cannot operate correctly because a drain safety repeatedly shuts it down, indoor humidity control may suffer.
Other commercial HVAC humidity problems Houston TX may result from:
- Equipment sizing
- Controls
- Air infiltration
- Ventilation
- Short cycling
- Cooling performance problems
Condensate drainage is therefore one part of a larger moisture-control strategy.
HVAC Water Leaks and Mold Prevention
Persistent moisture can create conditions favorable to unwanted microbial growth on susceptible building materials.
Commercial HVAC mold prevention Houston should focus first on moisture control rather than simply treating visible symptoms.
Businesses should:
- Repair active water leaks
- Correct drainage problems
- Dry affected materials appropriately
- Maintain HVAC equipment
- Address humidity problems
- Replace damaged materials when necessary
HVAC maintenance can help reduce avoidable condensate problems, but building moisture concerns may require coordination with other qualified professionals depending on the extent and source of water damage.
Walk-In Cooler Drain Problems
Commercial refrigeration equipment also produces condensate and requires reliable drainage.
A walk-in cooler drain clogged Houston TX restaurant or facility experiences may cause:
- Standing water
- Wet floors
- Drain backup
- Sanitation concerns
- Ice in colder areas
- Water around refrigeration equipment
A walk-in cooler water leak Houston should not automatically be assumed to come from the drain.
Possible sources may include:
- Drainage
- Condensation
- Door infiltration
- Evaporator conditions
- Piping
- Nearby plumbing
The source should be identified before repairs are performed.
Walk-In Freezer Drain Problems and Ice Buildup
Freezer drainage problems can be more complicated because water can freeze before it leaves the system.
A walk-in freezer drain problem Houston TX may result in ice accumulation around the evaporator or drain.
Potential causes include:
- Blocked drain
- Defrost problem
- Drain heater issue
- Improper drainage
- Ice accumulation
- Control problems
A walk-in freezer ice buildup drain Houston condition should be evaluated as part of the entire defrost and drainage system.
Removing visible ice without correcting the cause may provide only temporary relief.
Restaurant Refrigeration Drainage Problems
Restaurants depend on refrigeration equipment that operates continuously in environments where moisture, food debris, and frequent door openings can affect equipment conditions.
A restaurant refrigeration drain clogged Houston TX business experiences may lead to standing water around equipment or inside refrigerated spaces.
Facility and restaurant managers should pay attention to:
- Water under equipment
- Repeated drain backup
- Ice around drains
- Unusual odors
- Wet floors
- Temperature changes
- Evaporator icing
Professional commercial refrigeration service can help determine whether the problem involves drainage, defrost, airflow, controls, or refrigeration performance.
Cold Storage Drainage Problems
Cold-storage facilities may contain multiple evaporators and more complex drainage arrangements.
Cold storage drainage problems Houston TX can create operational concerns when water or ice accumulates in areas that need to remain clear and temperature-controlled.
Technicians may need to inspect:
- Evaporator drains
- Drain heaters
- Defrost operation
- Drain piping
- Ice accumulation
- Equipment controls
Because cold-storage systems may operate under different temperature requirements, the drainage approach must match the equipment and application.
How Drainage Problems Can Lead to HVAC System Failures
A drainage problem does not always damage the refrigeration circuit directly, but it can interrupt system operation.
For example:
- A drain becomes clogged.
- Water accumulates in the pan.
- An overflow safety activates.
- Cooling shuts down.
- Building temperature and humidity begin to rise.
Alternatively, a frozen evaporator can produce both a water problem and a cooling failure.
This is why facility managers should not view drainage as unrelated to HVAC reliability.
A relatively simple condensate restriction can eventually become an operational issue for the entire building.
When Commercial HVAC Drainage Repair Is Needed
Professional commercial HVAC drainage repair Houston TX may be necessary when:
- Drain lines repeatedly clog
- Drain pans leak
- Condensate pumps fail
- Float switches activate repeatedly
- Water appears around equipment
- Ceiling leaks occur
- Drain piping is damaged
- Frozen coils repeatedly create water
- Equipment shuts down because of condensate
The correct repair depends on the cause.
Possible solutions may include:
- Clearing drain restrictions
- Repairing or replacing drain piping
- Repairing damaged drain pans
- Replacing failed condensate pumps
- Correcting drainage configuration
- Repairing overflow controls
- Diagnosing frozen evaporator conditions
Preventive Maintenance Can Help Reduce Drain Problems
Professional commercial HVAC maintenance Houston TX should include attention to condensate management where applicable.
Maintenance tasks may include:
- Inspecting drain pans
- Checking condensate drains
- Evaluating visible drain restrictions
- Inspecting pumps
- Checking overflow protection
- Looking for standing water
- Evaluating evaporator condition
- Checking filters and airflow
For refrigeration equipment, industrial refrigeration maintenance Houston may also include inspection of drains, defrost systems, evaporators, and related components.
Preventive maintenance cannot prevent every blockage or leak, but it can help identify developing problems before water reaches occupied or sensitive areas.
When an HVAC Water Leak Requires Emergency Service
Not every small amount of condensate requires emergency repair.
However, businesses should act quickly when water threatens property, safety, or critical operations.
Emergency commercial HVAC repair Houston TX may be appropriate when:
- Water is actively entering occupied areas
- Ceiling materials are becoming saturated
- HVAC equipment repeatedly shuts down
- Water is near electrical equipment
- Critical cooling is lost
- A large amount of water is accumulating
Emergency refrigeration service may be needed when drainage or ice problems interfere with critical refrigeration operation or create unsafe conditions.
When water is near energized electrical components, personnel should avoid unsafe contact and have the condition evaluated by qualified professionals.
Commercial HVAC Condensate and Drainage Checklist
Facility managers can use this checklist during routine visual inspections.
Commercial HVAC
- Is water visible around the unit?
- Is the drain pan holding standing water?
- Is the drain line visibly leaking?
- Has an overflow switch activated?
- Is a condensate pump operating?
- Are ceiling tiles stained or wet?
- Is the evaporator freezing?
- Does the system shut down unexpectedly?
Commercial Refrigeration
- Is water collecting around evaporators?
- Are drains backing up?
- Is ice developing around freezer drains?
- Are floors repeatedly wet?
- Is the defrost system operating normally?
- Are walk-in temperatures stable?
- Is water appearing in unusual locations?
Any recurring condition should be investigated rather than repeatedly cleaned up without addressing the source.
Why Houston Businesses Choose ACF Mechanical
Commercial HVAC drainage problems can involve more than a clogged pipe. The underlying cause may involve airflow, evaporator conditions, controls, condensate pumps, drain pans, refrigeration performance, or equipment installation.
Houston businesses choose ACF Mechanical for:
- Experienced technicians
- Commercial HVAC expertise
- Industrial refrigeration knowledge
- Preventive maintenance
- Professional diagnostics
- Fast response
- Reliable service
- Experience with rooftop units, chillers, air handlers, commercial AC systems, walk-in coolers, and freezers
ACF Mechanical works with business owners, facility managers, restaurants, warehouses, industrial companies, and commercial property owners throughout Houston, TX.
Stop HVAC Water Problems Before They Damage Your Property
A small condensate problem can become a larger building issue when water continues accumulating above ceilings, around equipment, or inside refrigerated areas.
Clogged drains, deteriorated drain pans, failed pumps, frozen evaporator coils, and drainage problems should be investigated before they lead to repeated HVAC shutdowns or property damage.
Professional Commercial HVAC & Industrial Refrigeration Services in Houston TX from ACF Mechanical can help identify the source of commercial HVAC and refrigeration water problems and determine the appropriate repair.
Whether you are dealing with an air handler leaking water, a clogged rooftop unit drain, a walk-in cooler drainage problem, or unexplained water around commercial refrigeration equipment, early diagnosis can help protect both the system and the building.
Contact ACF Mechanical for professional commercial HVAC and refrigeration diagnostics, repair, and preventive maintenance in Houston, TX.
